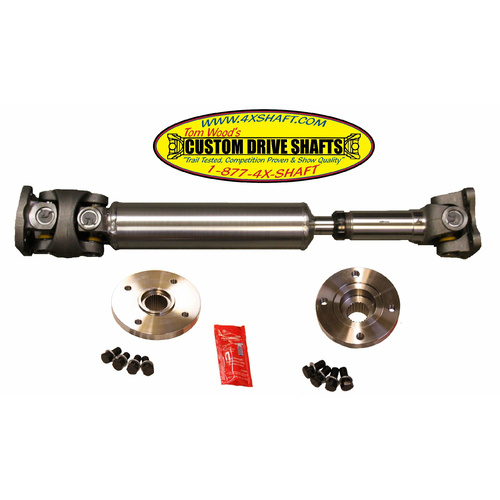

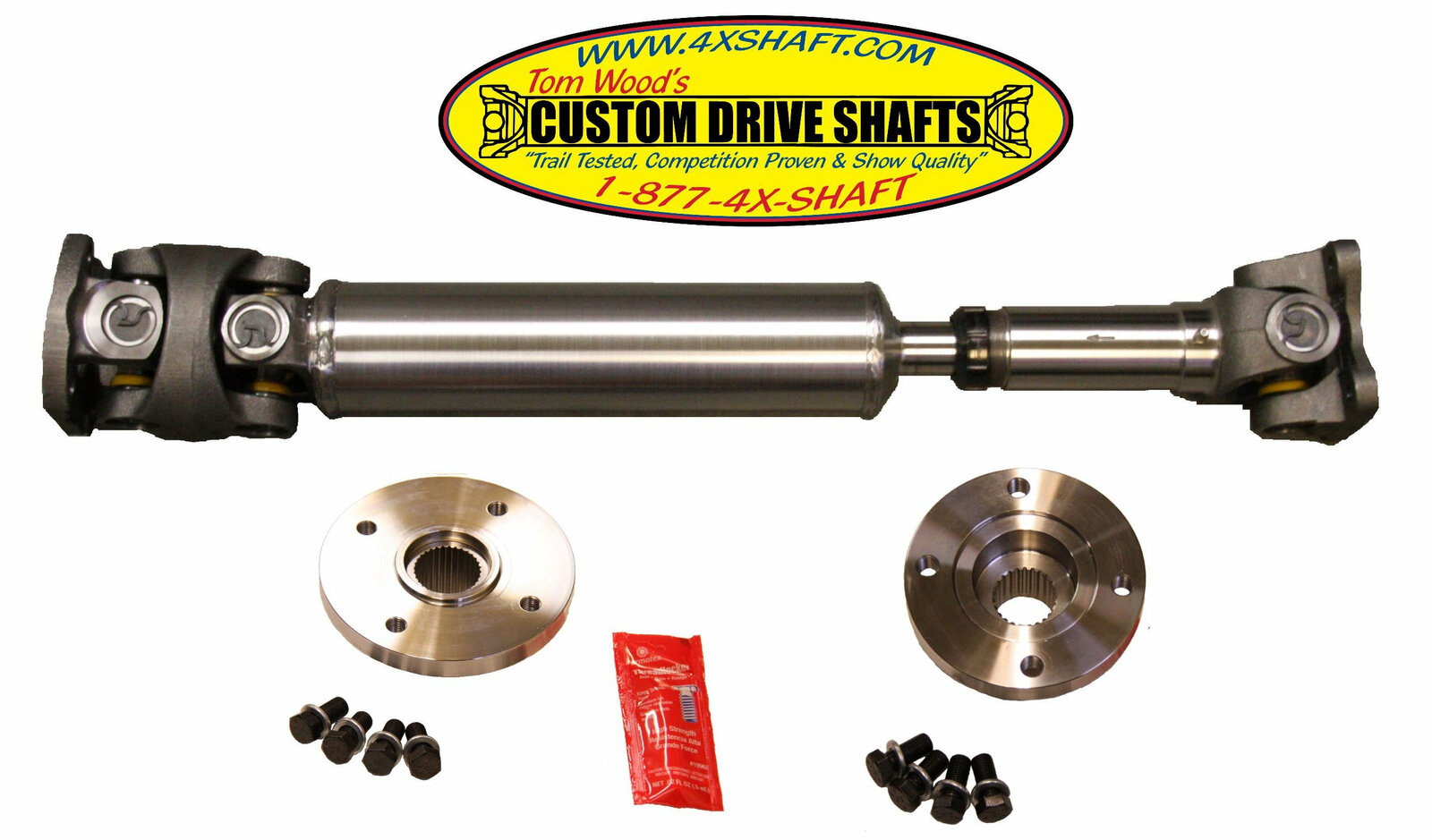

Tom Wood JK 1350 Rear Drive Shaft 38.5in

Tom Wood JK 1350 Rear Drive Shaft 38.5in

There are many different ways to build a drive shaft for the JK. With our version, we’ve elected to make a replacement flange for the differential pinions. These flanges are machined from solid billet steel. We designed this to accept standard "off the shelf" mating flanges. If these flanges ever break, you at least stand a chance of getting a replacement part from almost any drive line shop. This also nets a longer drive shaft with the centre of the universal joint closer to the pinion bearing.

Unless you plan on beating the vehicle really hard, we believe the 1350 series rear drive shaft would serve most people well.

These prices are for the complete package including required nuts, bolts, and flanges/yokes.

Which length drive shaft do you need?

A simple mesasurement is all that we need. See photo for how to measure. Rembember Jeep must be level with all four wheels on the ground when you do the measurement. Measurement must be done after installing a lift ! Please feel free to ring us should you require assistance.
