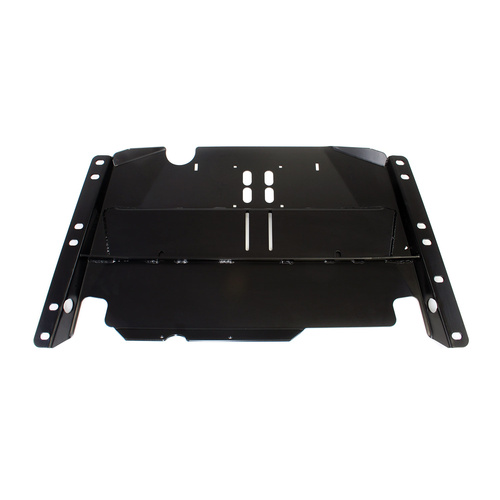

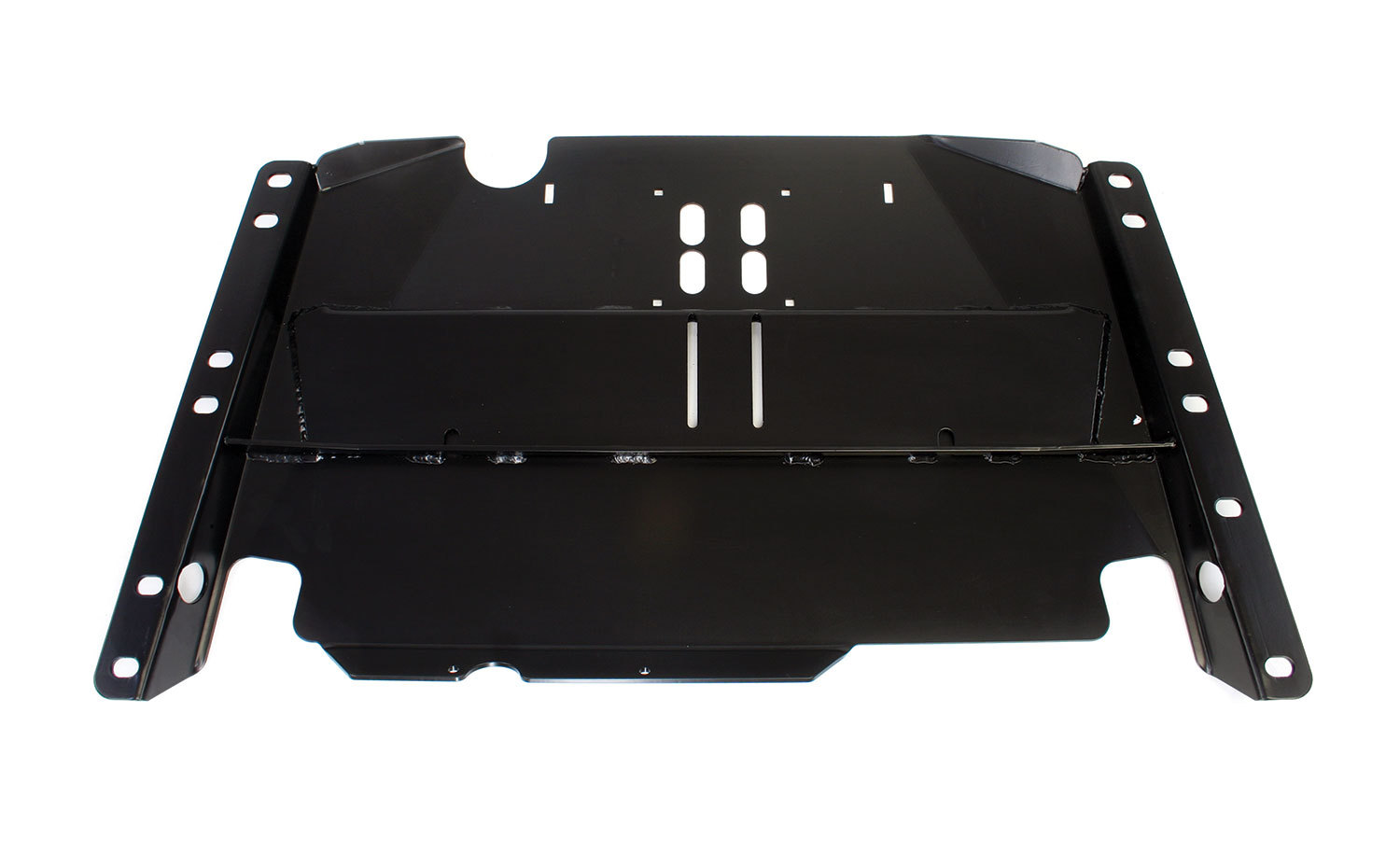

TJ Belly Up Skid Plate Kit

TJ Belly Up Skid Plate Kit

The TeraFlex TJ BellyUp increases your ground clearance by up to 2-3/8” by replacing the factory skid plate with a lower-profile 1/4” plate steel heavy duty skid plate. A 1” body lift is recommended with Rubicon applications for proper transfer case clearance. Some exhaust adjustment may be necessary. Fits all TJ Wrangler models including the Rubicon and Unlimited. Note: This kit requires some fine tuning and adjustment to eliminate driveshaft vibration. Short shaft kit: This kit will require the use of a short shaft kit (Part # 4444400, or # 4444401). Lowering kit: Because the BellyUp can make driveshaft angles severe, a lowering kit (Part # 1900100 for a 1” drop or Part #1900000 for 1/2” drop) will decrease the severity of that angle. This issue is common when the BellyUp is combined with a 4” suspension system.

• Fits 1997 to 2006 TJ Wrangler, Rubicon and Unlimited
• Black powder coat
• Replaces factory skid plate
• Increases ground clearance by 2
