AEV Pintler Black, 5/5 (5/127) 17x8.5

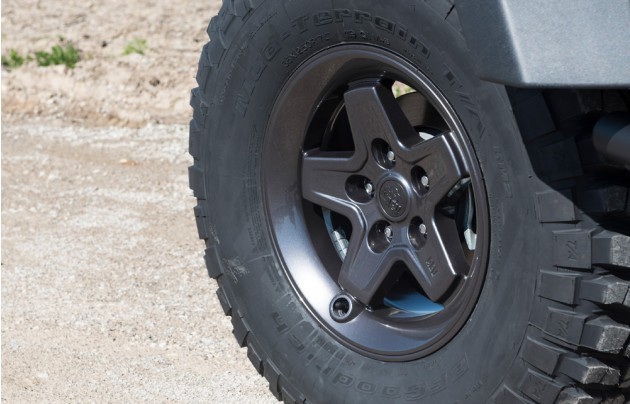

AEV JK Wrangler 17x8.5 Pintler Alloy Wheel - Black

AEV's classic wheel design, the Pintler combines timeless styling with the innovative features and off-road strength that you've come to expect from AEV. We pioneered the idea of recessed valve stems, which come in pretty handy when you're dragging your wheels across rocks or other obstacles. Most importantly, these wheels were designed for Jeeps, not as a one-size-fits-all aftermarket wheel. They have a specific offset, which on a JK provides the optimal balance of tire clearance (up to 37" tyres), scrub radius and handling. Available in Argent, Silver and Black finishes.

We recommend using a thin wall socket for installation to avoid scratching the inside of the lug pockets.

Key Features:

• Recessed valve stems
• Compatible with Tyre Pressure Monitoring System (TPMS)
• Tested to stringent SAE J2530 standards
• Lifetime structural warranty

Tech Specs:

• Manufacturing Process: Cast
• Material: Aluminum
• Coatings: Primer, powdercoat, clear topcoat
• Size: 17" x 8.5"
• Bolt Pattern: 5x5
• Offset: +10mm
• Approximate Backspacing: 5.2"

**Will require additional spacers to work as a spare for a JL with factory tyre mounted reverse camera.

Installation Instructions

(Click to view)
